G2504
Request a QuoteDescription
| Category | Specification |
|---|---|
| Overall Dimensions | 2950 * 1150 * 1900 mm |
| Motor System | 72V 2200W direct current electric motor to gouge shaft |
| Controller | 36 tube permanent magnet |
| Rear Suspension | Independent rear ball joint suspension system with external strap reduction |
| Axle Distance | 2100 mm |
| Tires | Front: 125/65-12 tubeless |
| Maximum Speed | 55 km/h |
| Recommended Battery | Lithium iron phosphate / Lithium polymer 100Ah–260Ah |
| Battery Position | Middle battery box |
| Battery Capacity | Lithium iron phosphate / Lithium polymer 100Ah–260Ah |

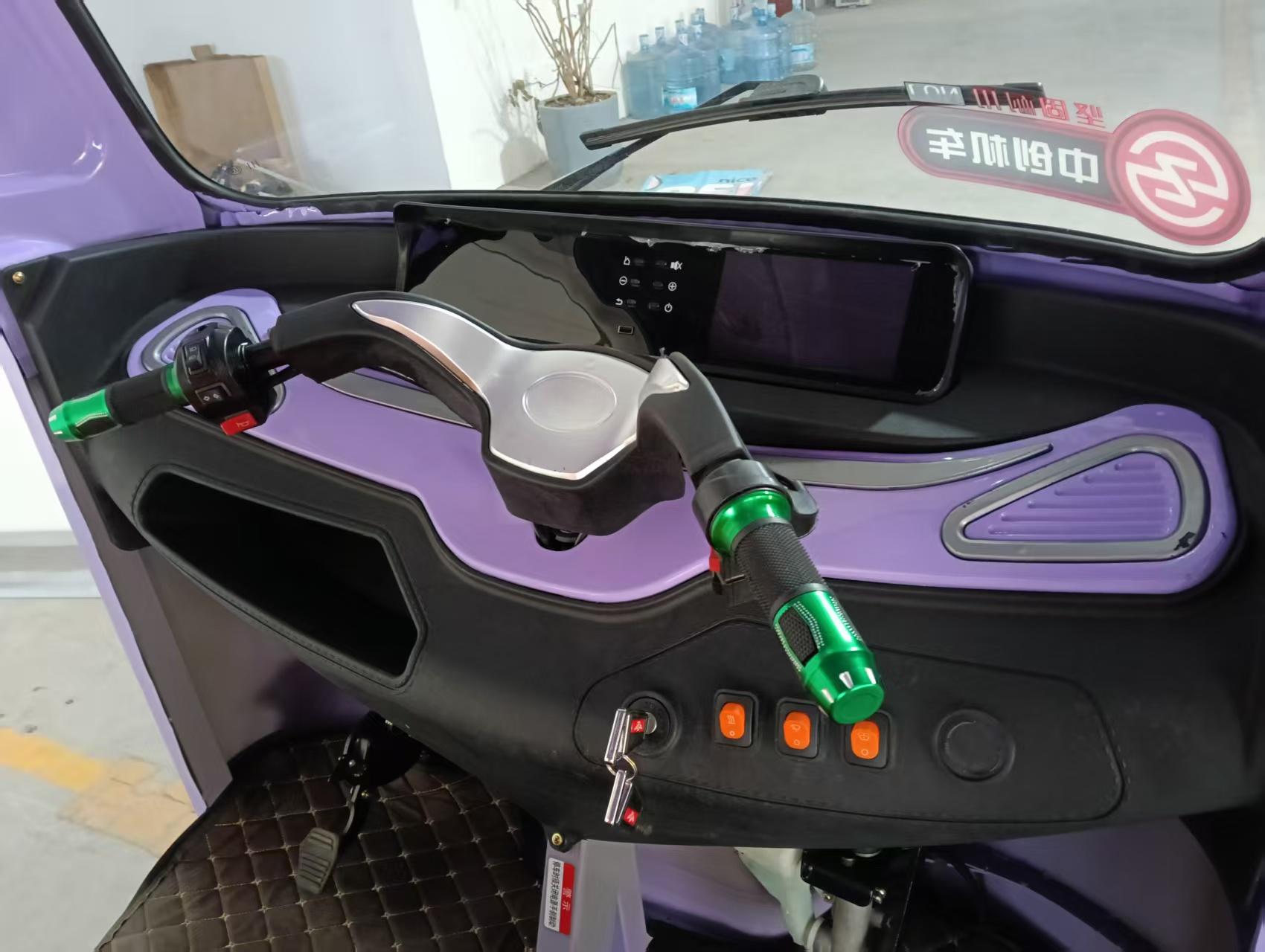

| Electrical Equipment | Side view mirror, multimedia devices, USB jack, rain shower, speaker |
| Maximum Load | ≥ 12% |
| Category | Specification |
|---|---|
| Equipment Weight | 450 kg |

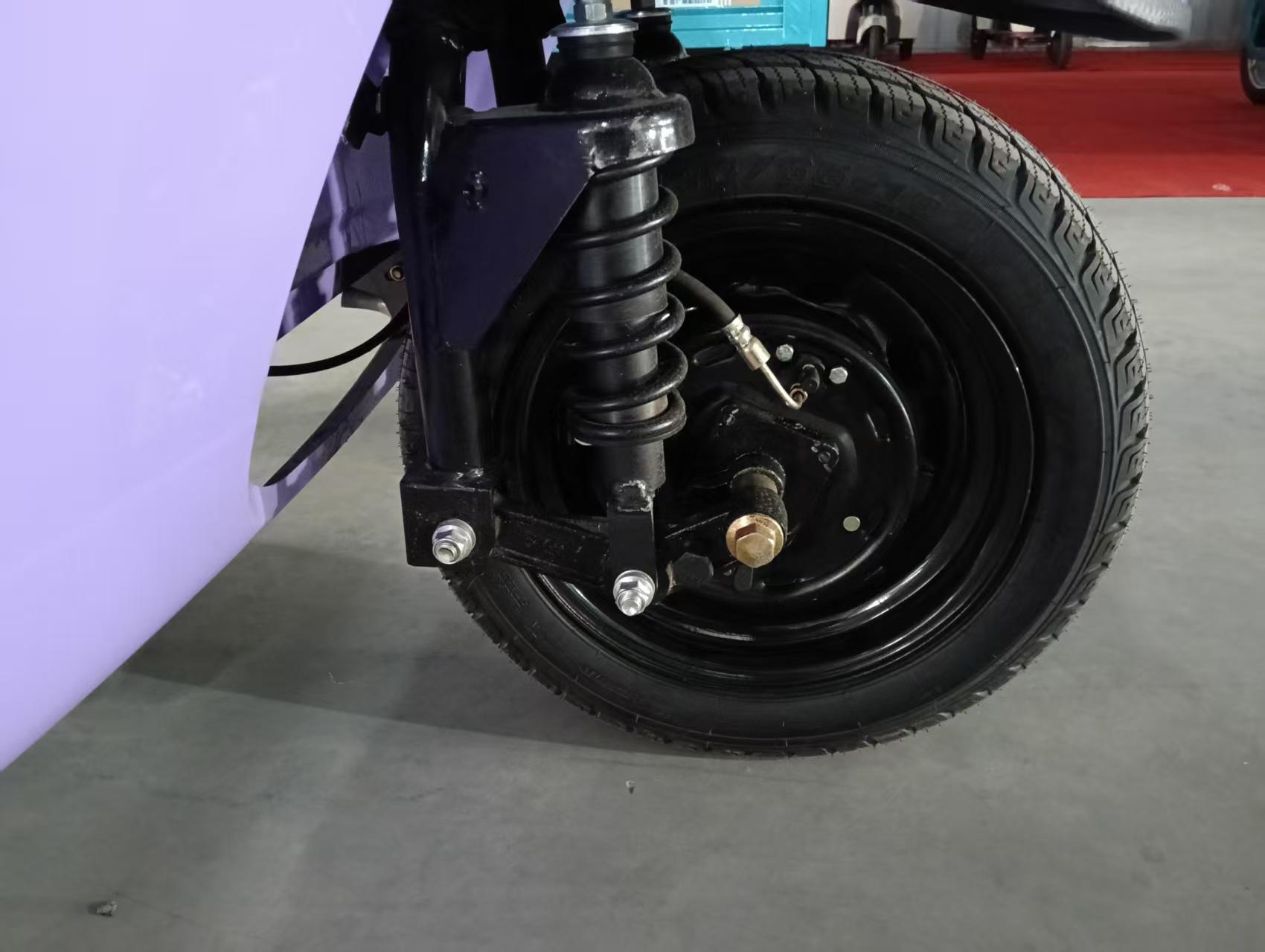

| Front Shock System | Hydraulic liquid pressure external shock |

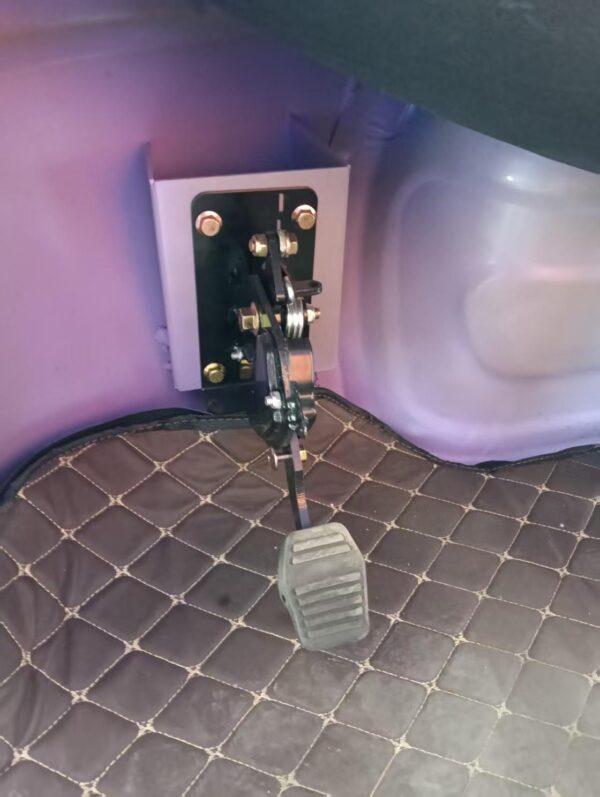

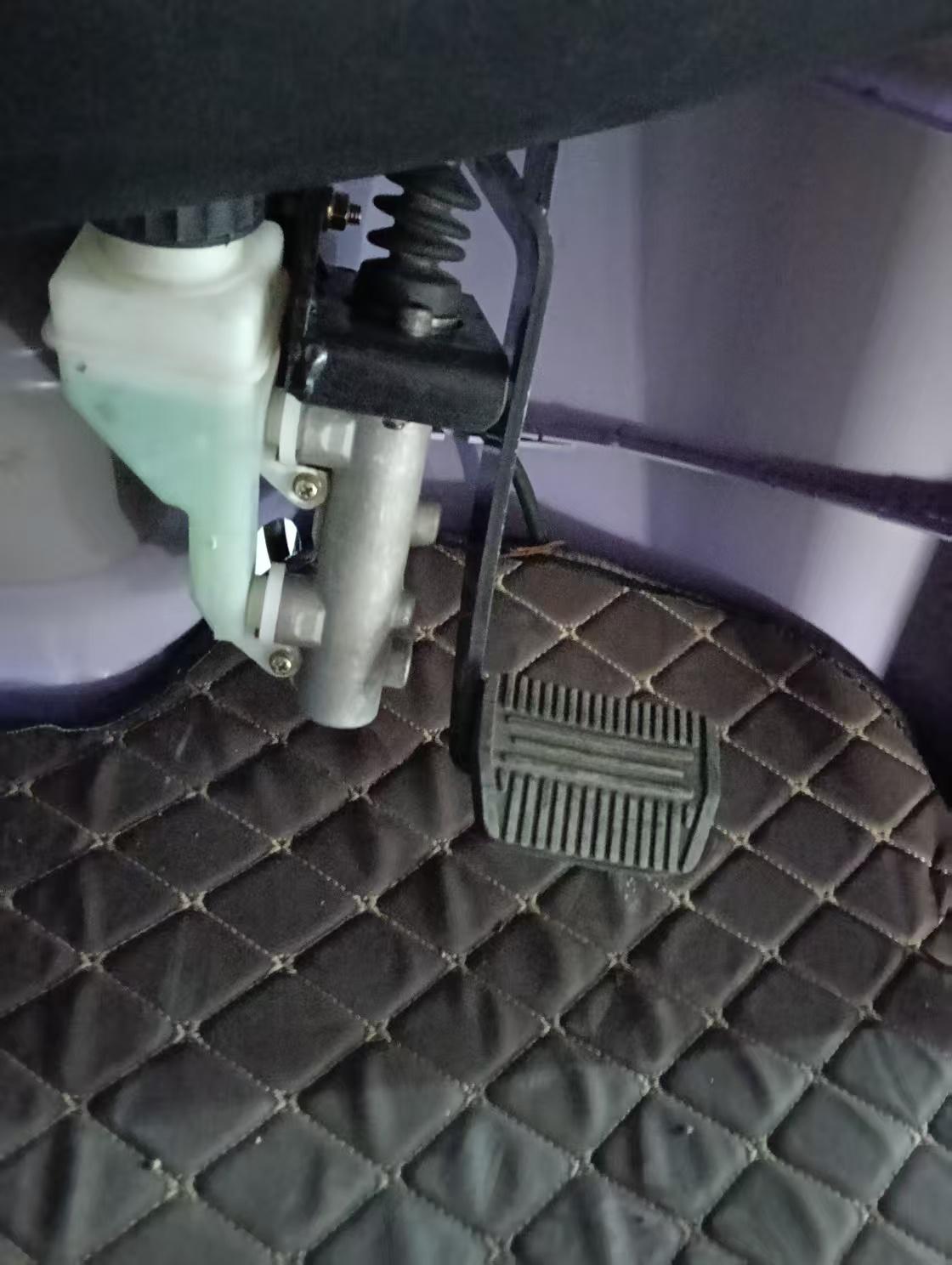

| Cutter Car | Foot-operated hydraulic rear pedal control + foot-operated steering car |
| Rear Frame | Independent rear ball joint suspension |
| Axle Distance | 1000 mm |
| Ground Clearance | ≥ 175 mm |
| Load Weight | 500 kg |
| Passenger Capacity | 7 persons |
| Charging Method | Support fast charging |
| Continuous Range | 80-190 km |
| Battery Box Size | 630 * 630 * 280 mm |
| Foot Base | Automotive style high-grade foot pad |
Structural and Technological Notes:
- The pipe frame uses a thickness of 3.0mm, with side beams of 2.5mm, and a base plate thickness of 1.0mm. The overall construction is a one-piece structure for the main frame.
- The vehicle adopts a modular design for electrical equipment. The main body structure is connected by folding and assembling, with various packages.
- The entire vehicle uses LED lighting tools, and the vehicle’s overall appearance is large and bright, with functional designs for lighting.
- The entire structure is adapted to the standards of automotive-grade structures.
